Presentation

The panel_editor plugin adds a right-side panel.

To open it, just click on th plugin's icon into sideBarMenu :

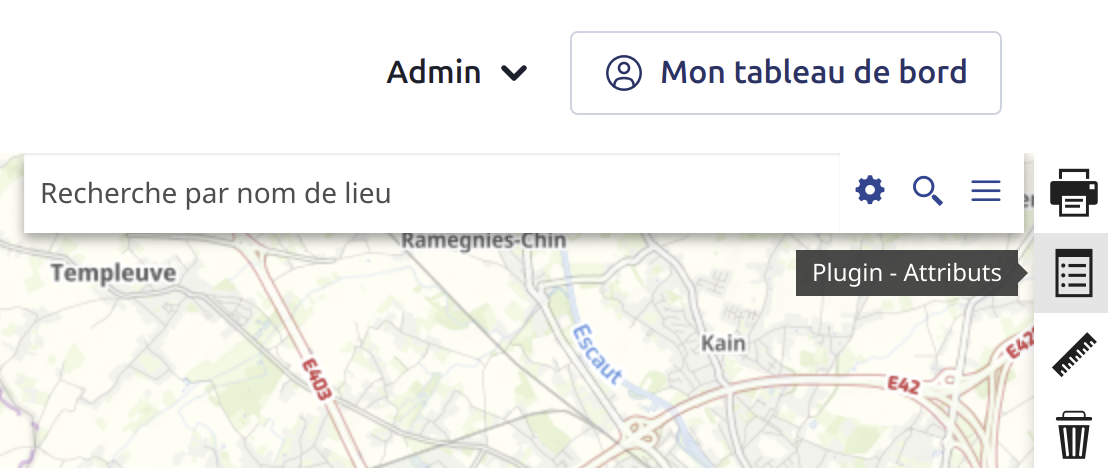

sidebar location

User flow

  1. Enable the tool from the sidebar menu (panel_editor).
  2. Click on the map to select a feature (identify).
  3. Select the layer (if multiple responses) and the feature.
  4. Read visible attributes in read mode.

general image

  1. Switch to edit mode with the pencil button (according to user role and restricted area).
  2. Save, cancel, or delete according to permissions.

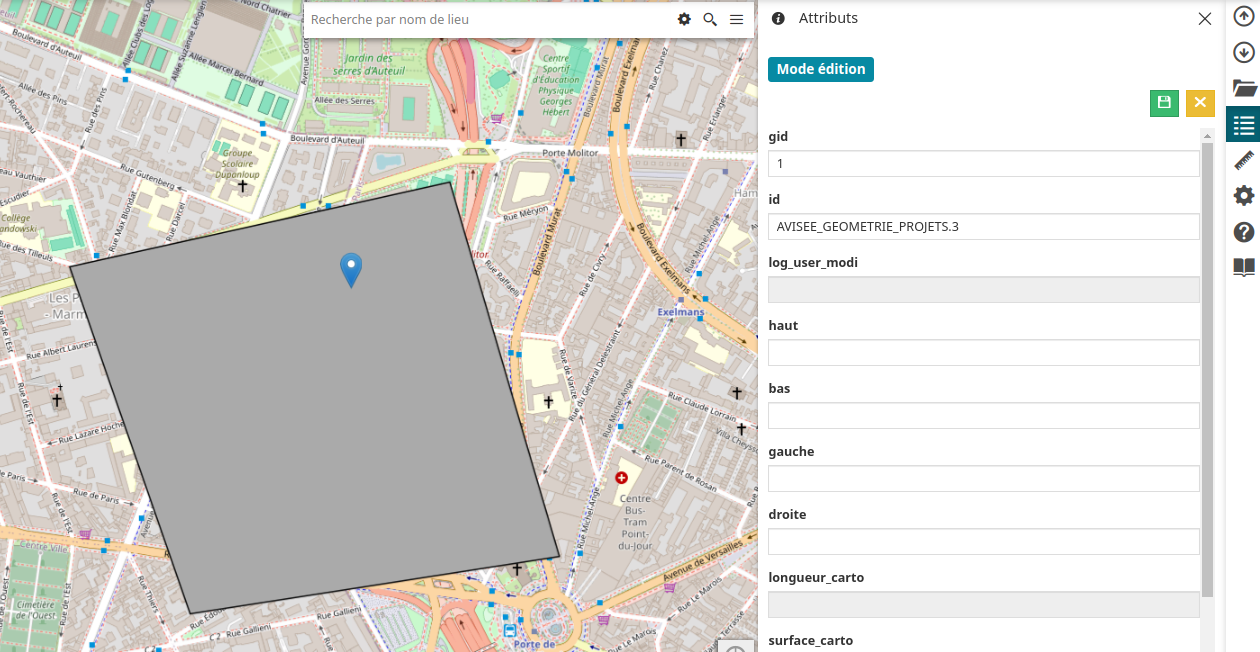

read mode

UI behavior

  • Panel title comes from cfg.title.
  • Sidebar button icon comes from cfg.icon or cfg.iconByContext depending on the current context.
  • Edit mode is displayed with a label.
  • Action toolbar is fixed (outside scrolling area).
  • Fields are displayed in a scrollable area.
  • Feature labels in the selector use:
  • [number] - (field_name) field_value
  • where field_name is configured with featureFieldLabel at layer level.
